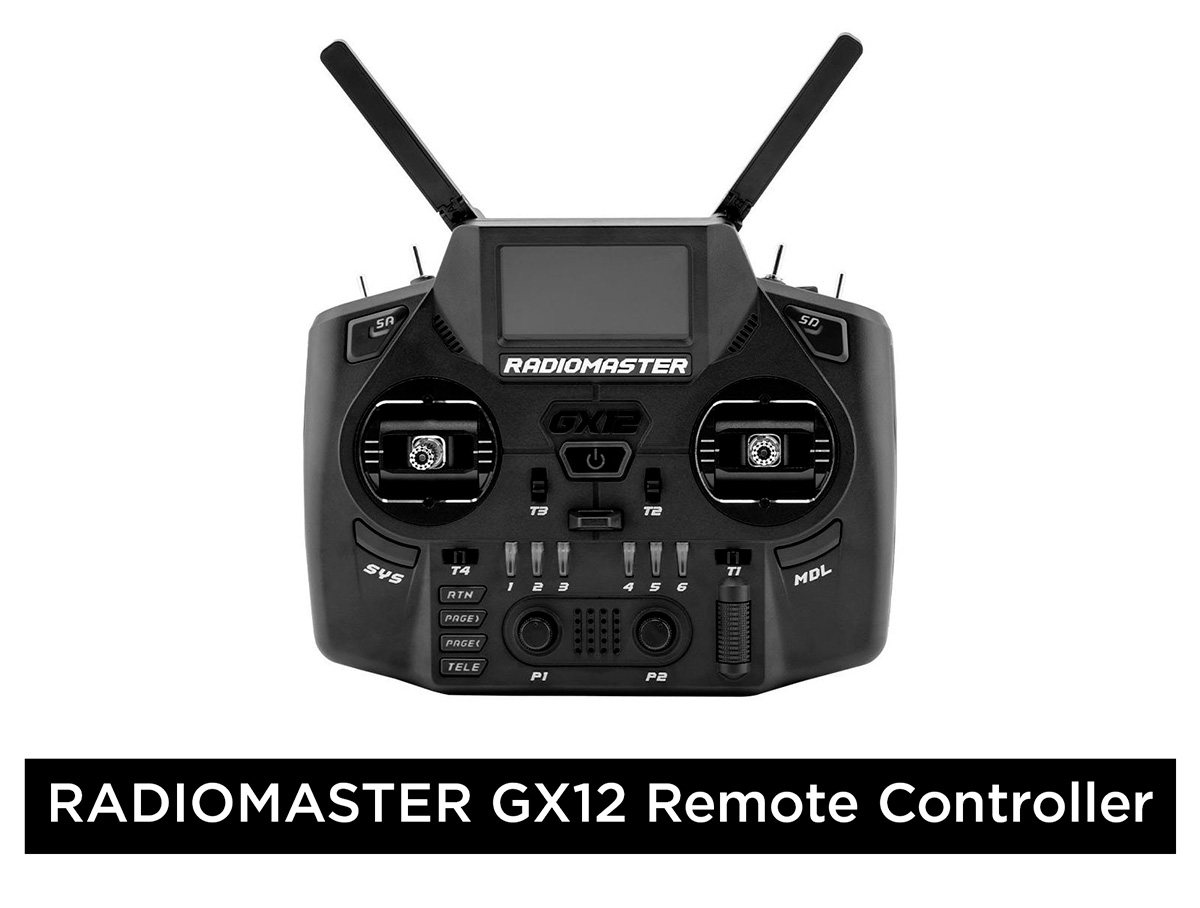

Radiomaster GX12 radio control ExpressLRS Edge XT M2 (HP0157.0094-BLK)

RadioMaster GX12 Drone Controller: A Revolution in Drone Control

In today's world of drone technology, reliable and precise control is the key to successful flights. The RadioMaster GX12 remote control sets new standards in this field, combining advanced technology and ergonomic design to provide the best drone control experience.

Key features of RadioMaster GX12

• Dual-band signal transmission

The RadioMaster GX12 features integrated, foldable antennas that support simultaneous operation on 2.4 GHz and 900 MHz frequencies. This provides extended range and communication reliability, allowing operators to confidently control drones even in challenging conditions.


• High-precision joysticks GX01

The controller is equipped with GX01 all-aluminum joysticks with 3D digital Hall sensors. These joysticks provide extreme precision and control sensitivity, which is critical for professional drone operators.


• Integrated cooling system

With dual 1W transmitters, the GX12 has a powerful cooling system that maintains the device at an optimal temperature even during intensive use, ensuring stable operation without the risk of overheating.


• Programmable RGB LEDs

The controller features individually programmable 6-way switches and RGB LEDs on the SA/SD switches, allowing users to customize the LEDs to their needs while providing visual control over the switch status.


Benefits of using RadioMaster GX12

• Extended range and reliable communication : Dual-band transmission ensures stable communication even in challenging conditions.

• High precision control : Digital joysticks with Hall sensors guarantee smooth and precise control of the drone.

• Convenience and ergonomics : Foldable antennas and sticks make it easy to transport and store the remote.

• Individual settings : Programmable switches and RGB indicators allow you to adapt the remote to the operator's personal needs.

The RadioMaster GX12 is an advanced solution for professional drone operators who value reliability, precision and individual settings. With its innovative features and high quality workmanship, this remote control provides stable communication, precise control and maximum ease of use. It is ideal for both professional use in FPV racing, aerial photography and industrial tasks, as well as for amateur piloting. The RadioMaster GX12 will become a reliable tool for every operator who wants to achieve a new level of skill in controlling drones.



Technical specifications

• Dimensions: 183×148×78 mm
• Weight: 573 g
• Frequencies: 2.4 GHz and 900 MHz
• Protocols: ExpressLRS
• Operating system: EdgeTX
• Battery: 7.4V (2-cell Li-Po) or 3.7V (18650/21700 Li-Ion)
• Memory: 512 MB built-in flash memory
• Display: 28×64 monochrome OLED
• Connectivity: USB-C for charging, firmware updates, and simulator connection
• External module: Nano/Crossfire compatible
• Antennas: Foldable dual-band (2.4 GHz/900 MHz)
• Cooling system: Built-in fan
• Suspensions: GX01 1000 Hz, 3D digital with Hall effect, folding sticks
• Charging: 2S intelligent balancing charging
• Supply voltage: 6.6 - 8.4 V DC
• Current consumption: 390 mA - 1000 mA (depending on RF output power)
• Firmware Update: Via USB or EdgeTX Companion on PC
• Number of channels: Maximum 16 (depending on receiver)
• Compatibility: Supports all current ExpressLRS 2.4GHz and 900MHz receivers, as well as the new Gem-X

Equipment

• GX12 remote control - 1 pc.
• Branded bag - 1pc
• Battery tray type 18650 - 1pc
• Replaceable switch panels - 2pcs
• Type-C cable - 1 pc.
• Display protection - 1pc
• Hexagon key 1.5 mm - 1 pc
• Low tension cardan springs - 4pcs
• Two-position switch - 1pc
• Momentary switch - 1pc
• RadioMaster sticker set - 1 pc.
• Instructions - 1 pc.
