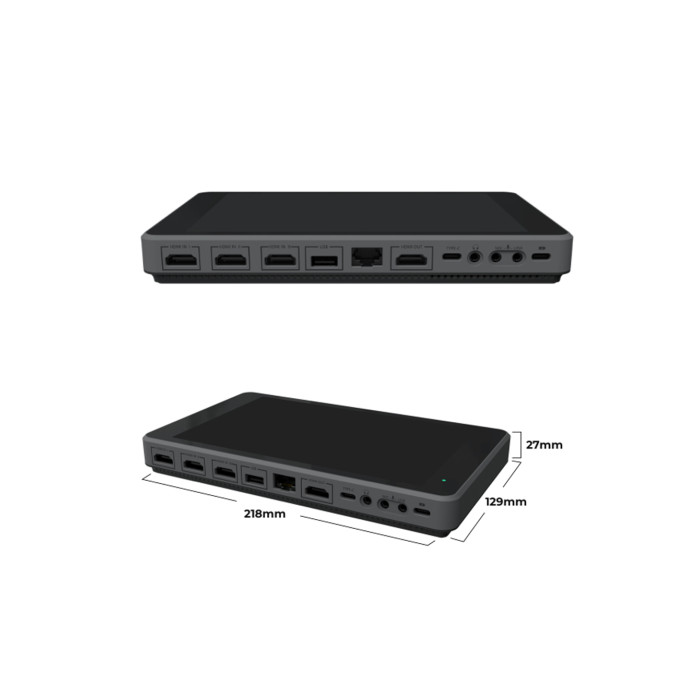

Portable video switcher Yololiv Yolobox Pro

Portable video mixer Yolobox Pro from Yololiv

The multifunctional Yolobox Pro mixer is the ideal solution for convenient streaming from anywhere. Compact dimensions, ample capabilities, mobility - all this will allow you to use the device in a wide variety of situations. The main task of the device is to receive a video signal from any source and broadcast it. The sources can be either video cameras or pre-recorded material. The user has access not only to the popular platforms Youtube, Twitter, Twitch, Facebook, etc., but also the ability to independently select a service for broadcasting using an RTMP server.

The Yolobox Pro portable stream studio is suitable for broadcasting amateur content, covering various events, activities, etc. You can record and broadcast simultaneously. This allows you to use the device as an on-camera monitor. Very convenient in cases where one person acts as cameraman and director.


Stream studio Yolobox Pro allows you to broadcast simultaneously to 3 channels. The user can flexibly configure broadcast parameters. The incoming video resolution is 720/1080p with a bitrate of 2.5/5 Mbit. Video data can be transmitted in 540/720/1080p resolution using the H.264 codec.

The Pro version differs from the regular version with more advanced features:

• Supports up to 8 signal sources;
• Bright 8-inch touchscreen monitor;
• More capacious battery;
• Powerful processor;
• Supports SD cards up to 1 TB;
• Ability to connect a microphone, mixer, etc.;
• Additional software features.

In the near future, the manufacturer promises to update the Yolobox Pro firmware and add a number of new features:

• Audio mixer - with support for up to 3 channels;
• Chroma key - replacing the background in the frame;
• Improved audio interface;
• Editing fonts, title colors and much more.

Features and benefits of Yolobox Pro

• Huge functionality with flexible settings for streaming;
• Mobile dimensions allow you to use the device absolutely anywhere;
• Possibility of simultaneous broadcasting and recording of events;
• Input video resolution is 720/1080p;
• Video streaming in 540/720/1080p resolution;
• Ability to stream on popular platforms - Youtube, Twitter, Twitch, Facebook, etc.;
• The user can independently determine the platform for broadcast using the RTMP address;
• Compatible with various cameras - DSLR, DV, GoPro, USB cameras, iOS and Android gadgets, etc.;
• Supports network connection using various technologies - Ethernet, Wi-Fi and 4G;
• Simultaneous processing of up to 8 signal sources;
• Recording broadcasts to a memory card in mp4 format;
• Flexible editing of content during broadcast - adding effects, watermarks, etc.;
• Touch screen 8 inches diagonal;
• The user has the opportunity to independently create endings and introductions;
• Battery life - up to 4 hours;
• Supports SD cards up to 1 TB.
• Modern network connection standards

Modern network connection standards

In Yolobox Pro, the manufacturer has implemented absolutely all possible connection standards. This allows users to broadcast from absolutely anywhere, as long as there is Internet access. You can connect your device to the network in one of the following ways:

• Connection via Ethernet cable RJ45 - bandwidth is 1000 Mbit;
• Wi-Fi 2.4G/5G wireless connection module;
• Mobile connection 4G LTE via SIM card.

Such capabilities allow you to effectively use the device in a variety of situations. When autonomy is required, you can use a mobile connection. And if you have a wired Internet, use Ethernet technology. Which is important for working and processing a large number of signal sources.

Simultaneous processing of up to 8 signal sources

The Yolobox Pro device supports simultaneous operation with various signal sources. This fashion can include working with multiple cameras, including a webcam, computers, monitors, drone, etc. All these devices can work simultaneously when connected to Yolobox. Thanks to this, the Device can be used effectively and universally, depending on current goals and objectives.



To connect devices, the case has three HDMI connectors, two USB Type-C, one HDMI for connecting a monitor, a slot for an SD card, and a USB for a webcam. And one more source can be broadcast directly from the cloud. To broadcast, you need to register one-time on the YoloLiv branded service. Where it will be possible to choose redirection to any platform, at the user’s request. And also provide flexible settings for broadcast parameters.


Touch control interface

The Yolobox Pro control interface is touch-sensitive, with the help of which video data is transmitted and fine settings are made. The 8-inch diagonal volumetric display allows you not only to monitor the image, but also to exercise control during the stream. During the broadcast, the user can adjust the sound, frequency, switch between signal sources and much more.


Autonomous operating time

Yolobox has a capacious 10,000 mAh battery, which provides battery life of up to 4 hours. For charging, a USB Type-C port with support for the fast charging protocol is used. While working with the device, you can provide constant power. Using a power adapter or external battery.

Yolobox Pro connectors

• HDMI IN 1: Video input
• HDMI IN 2: Video input
• HDMI IN 3: Video input
• USB IN: Video input (Notes: some webcams only transmit video, no sound)
• Ethernet: Connect to the Internet using a cable
• HDMI OUT: Video output
• TYPE-C 3.0: Full-featured interface supporting video and audio input
• AUDIO OUT: 3.5mm audio output, for connecting headphones
• MIC IN: Mono input for connecting a microphone
• LINE IN: Stereo input, for connecting line sources (mixer, synthesizer)
• TYPE-C: Power connector
• 1/4" screw hole for mounting camera mount
• SD card slot for video and PDF files and recording
• SIM card slot (Nano) for connecting mobile Internet
• Power button


Yolobox Pro delivery kit

In addition to the streaming device itself, the kit includes:

• USB charging cable with power supply;
• HDMI Type A cable;
• Hot Shoe Adapter.
