Signal amplifier for the A150S-Raptor SR remote control for RC PLUS 2 Controller

A150S-Raptor SR Signal Amplifier for RC PLUS 2 Controller

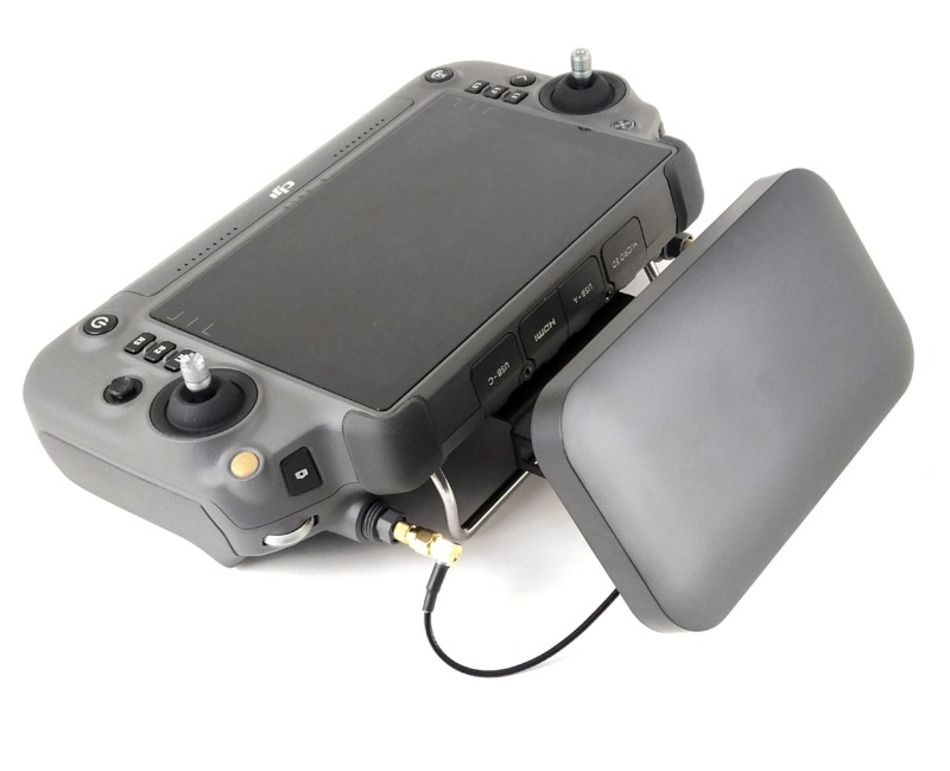

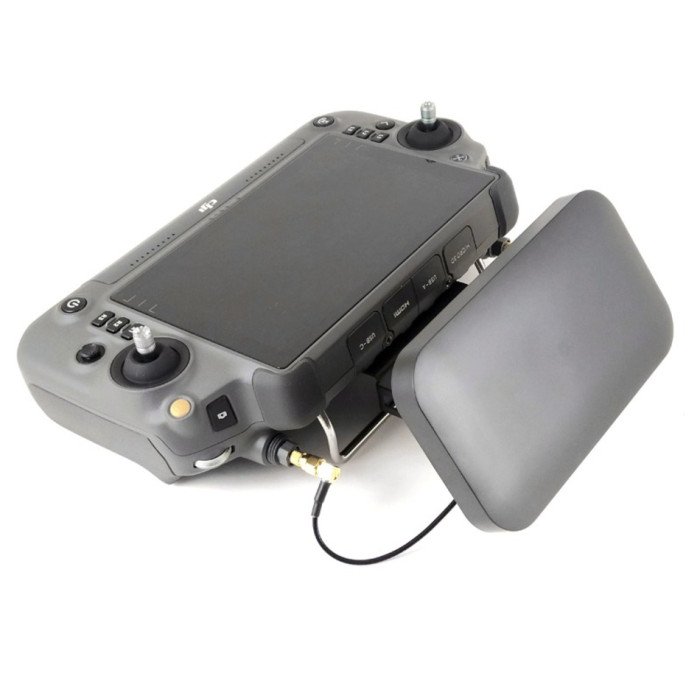

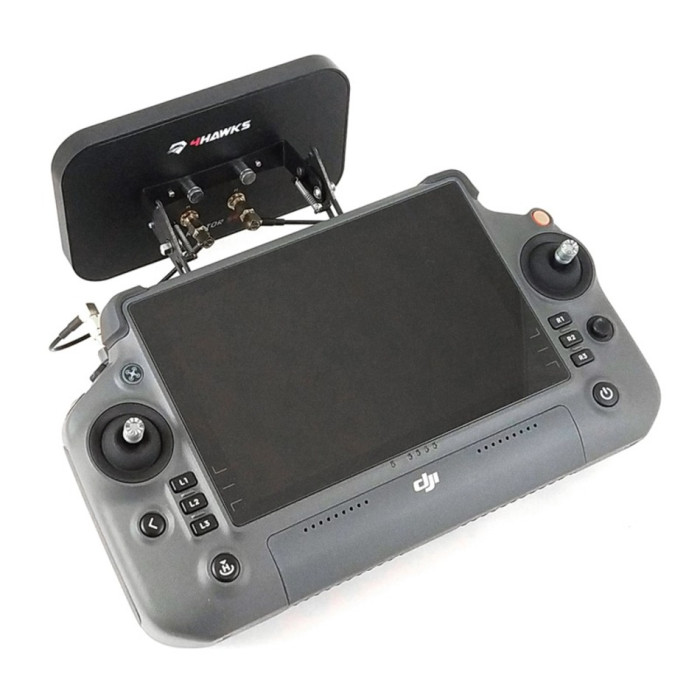

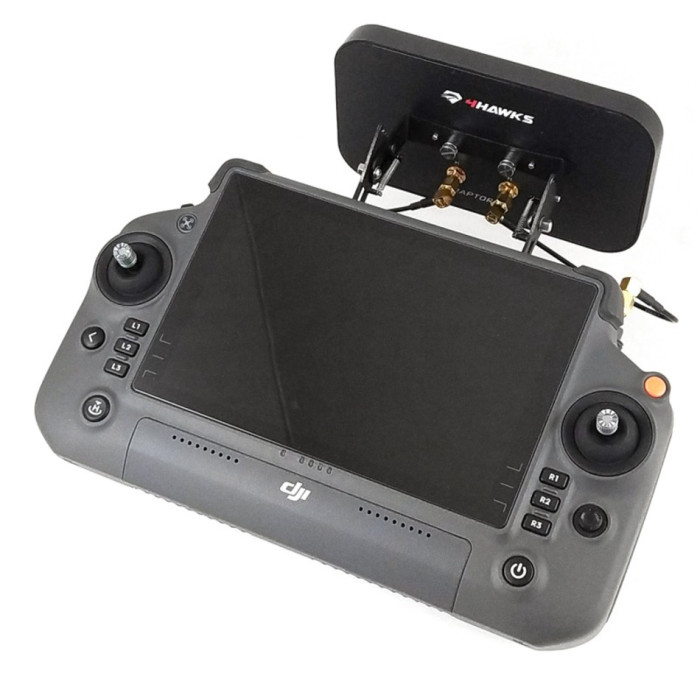

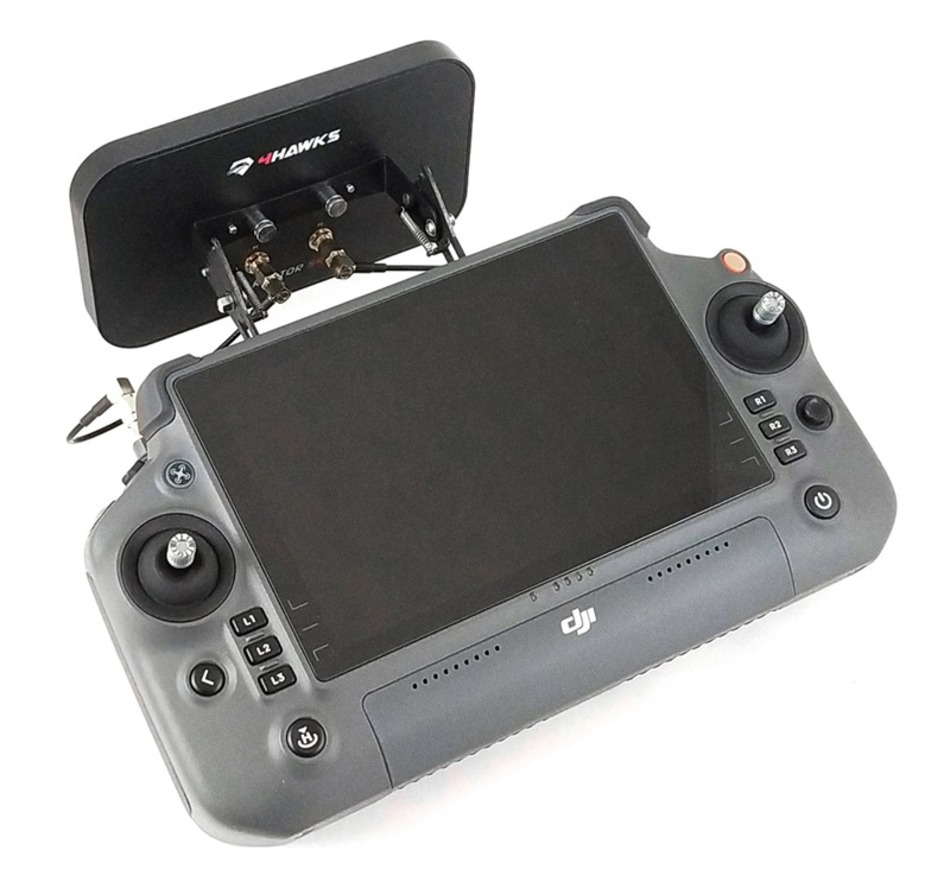

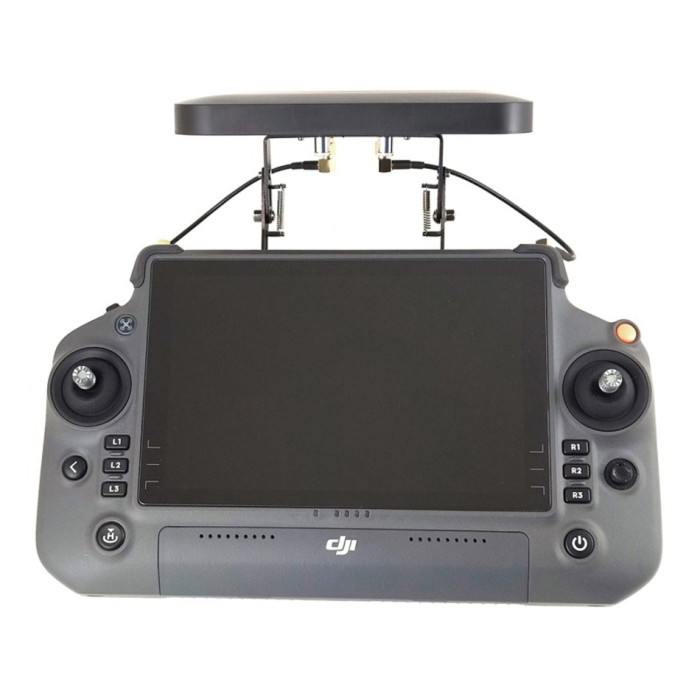

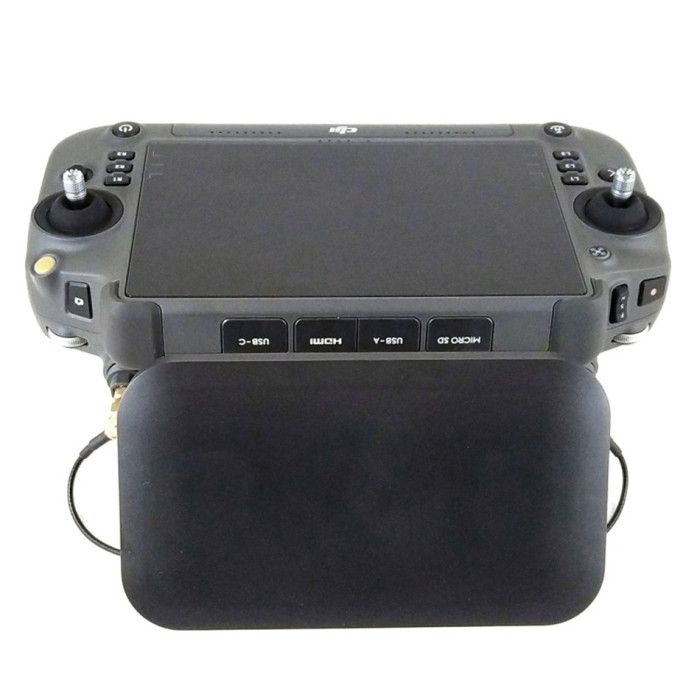

The A150S-Raptor SR (Raptor XR series) is a high-performance directional panel antenna specifically designed for use with the DJI RC PLUS 2 controller. The device is a compact and lightweight solution for significantly expanding the operational capabilities of your drone without interfering with its internal design.



Main characteristics

• Device type: compact directional panel antenna
• Operating bands: simultaneous support for 2.4 GHz and 5 GHz frequencies
• Performance boost: up to 2x communication range
• Construction: monolithic housing without removable parts for maximum reliability
• Weight: the weight of the entire system as a whole is about 180 g

What is included in the kit?

The delivery kit includes all the necessary components for quick integration of the antenna with your controller:


• Raptor XR antenna amplifier.
• Stainless steel mounting bracket.
• 2 pigtail cables (RP-SMA male, RG316, black).
• 2 MCX-SMA adapters.
• Tool set (8 mm wrench, 1.5 and 2.5 hexagons).
• Mounting screws with internal hexagon.



Advantages

1. Double the distance

Thanks to the gain of up to 10 dBi, the antenna allows you to increase the radius of stable control and data transmission by 2 times compared to standard solutions.



2. Intelligent dual-band mode

The antenna operates in the 2.4 and 5 GHz bands simultaneously. This ensures automatic adaptation to radio conditions and minimizes the likelihood of signal loss due to interference.






3. Crystal clear video at the edge of range

Improving reception quality allows you to receive a stable video stream without freezes and artifacts even when the drone is significantly removed from the launch point.



4. OnClick positioning system

The mount is equipped with an adjustment mechanism with 5 fixed tilt positions. This allows you to precisely direct the antenna beam at the drone with one hand movement.


Technical specifications

Dimensions and materials:


• Dimensions: 16.1 x 9.1 x 1.7 cm
• Housing materials: Samsung ABS, polyurethane, stainless steel, aluminum, PTFE PCB
• Antenna weight: 110 g (without mount)
• Connector: RP-SMA female



Scope of application

• Professional video monitoring: For tasks where HD link stability is critical when working at medium and long distances.
• Industrial facility inspection: Ensures reliable signal reception in difficult terrain or with metal structures.
• Search missions: Allows you to increase the area covered in a single flight due to the extended control radius.



Why is it worth buying the A150S-Raptor SR antenna for the RC PLUS 2 Controller?

If the standard signal starts to drop before your enthusiasm (or battery life) runs out, the Raptor XR will fix it in one minute. You get twice the range and flawless video without having to drill into the case or void your warranty.
