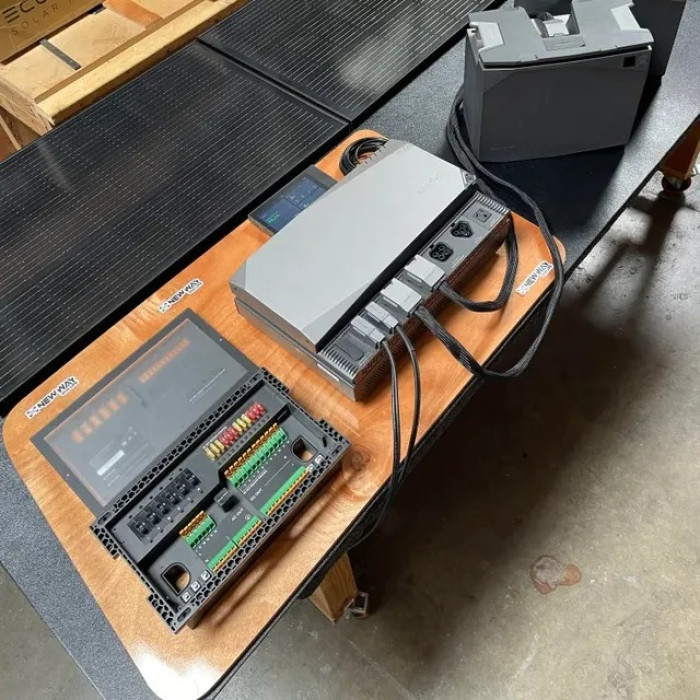

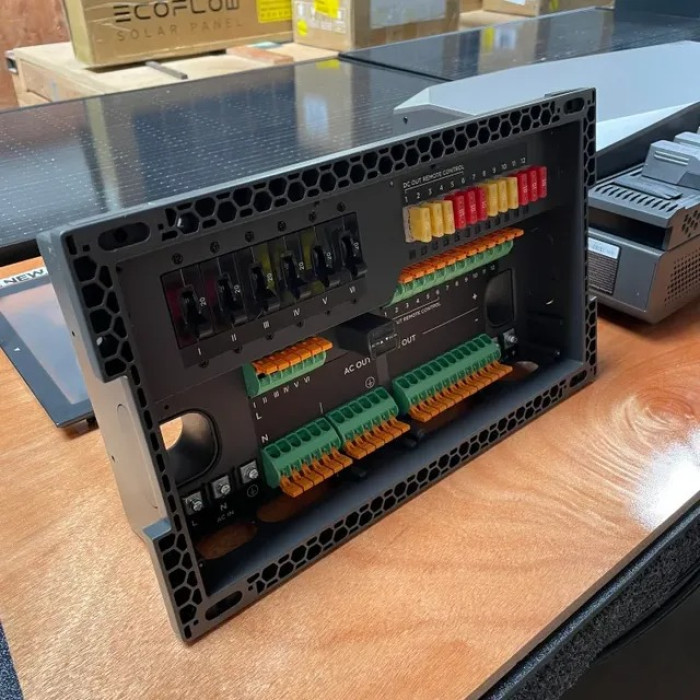

EcoFlow Power Kit control panel

There are three versions of EcoFlow Power Kits. The EcoFlow Power Kit control panel is included in the Premium kit. The panel itself distributes DC and AC current, thereby allowing the user to control the current at the circuit level.

Characteristics:

• Weight: 2.6 kg
• Dimensions: 35.4 x 21 x 9.8 cm

• AC output: Six circuits (1/2: 20A, 3/4/5/6: 10A) 220-240V, 50Hz
• DC output:
  • six controlled circuits + six normal circuits
  • maximum current 20 A in each circuit,
  • 10–30 VDC
• AC input:
  • 220-240 V, 50 Hz,
  • maximum current 30 A
• DC input:
  • 10–30 VDC
  • maximum current 70 A
