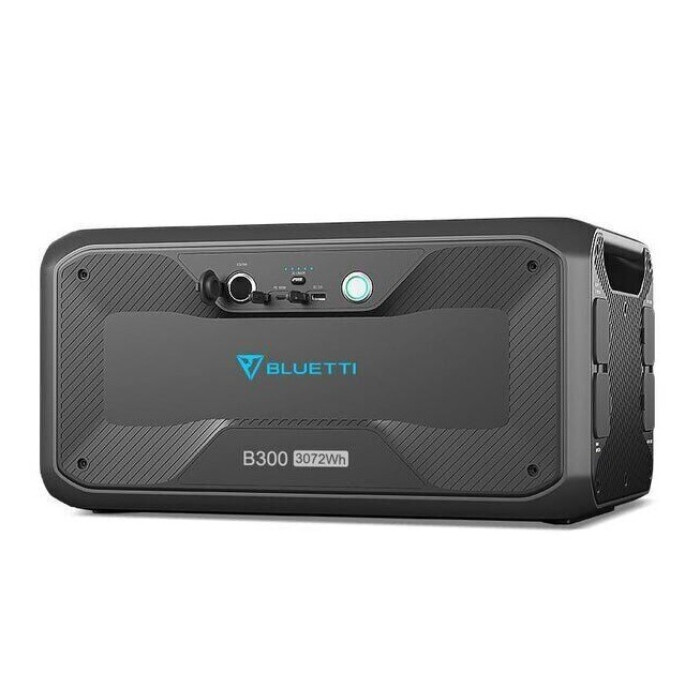

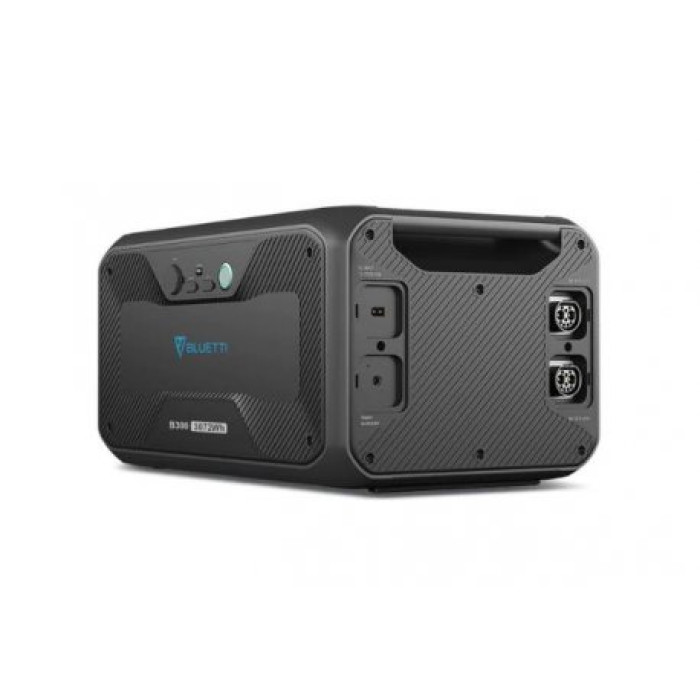

Battery module BLUETTI B300 (3072 Wh)

The newest battery module Bluetti B300 is designed to increase the capacity of Bluetti AC200MAX, AC200P, AC300 stations. This module can also be used autonomously thanks to USB ports.

The capacity of the battery module is 3072 Wh . This capacity allows you to significantly increase the capabilities and operating time of the main charging station. The battery produces a sinusoidal current.

The battery is lithium iron phosphate ( LiFePO4 ), the safest and most resistant to high voltage, overheating and other emergency situations. The number of battery cycles is 3500+ , after which it retains 80% of its capacity; and 6000+, after which it retains up to 50% of its capacity.

The BMS system protects the module from operation outside its safe zone, i.e. Protects against overvoltage, overheating, short circuit, etc.

The battery can also be used autonomously thanks to the USB connectors. Through these ports you can charge laptops, phones, tablets and other equipment charged via USB ports.

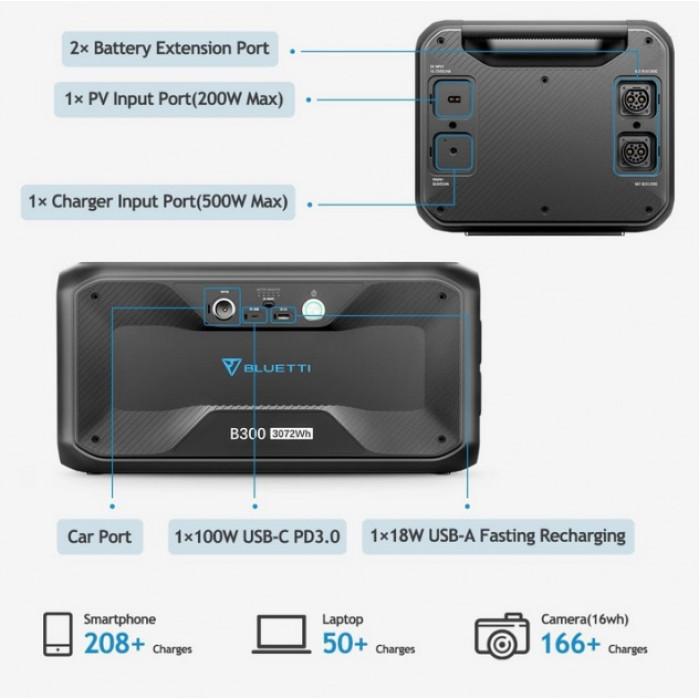

Connectors:

• 1x USB-C (100 W);
• 1x USB-A (18 W);
• 1 x car cigarette lighter 12V/10A.

Charging methods:

• Thanks to the MPPT controller, the B300 can be charged from a solar panel with a maximum load of 200W.
• Charges from a regular AC outlet.
• Car port (cigarette lighter).
• Lead acid battery.
• Can be charged from two sources: socket + solar panel, 2 sockets, 2 solar panels

Compatibility with Bluetti charging stations:

• AC200MAX;
• AC200P;
• AC300.

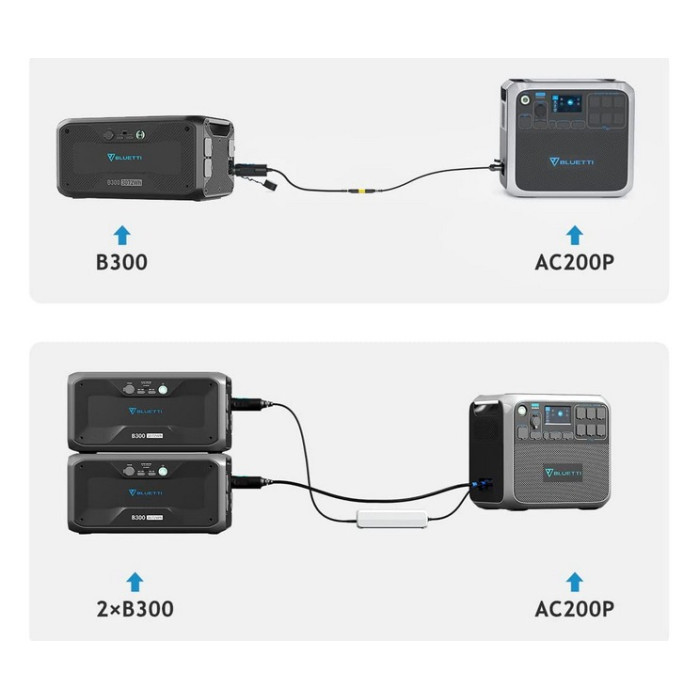

How to connect the B300 module and the AC200P charging station

The Bluetti B300 battery module is an excellent solution for outdoor recreation, camping, fishing, or in case of an emergency power outage. Not only will it increase the capacity of your station, but it can also work autonomously.

Characteristics:

• Capacity: 3072 Wh
• Battery type: lithium iron phosphate (LiFePO4)
• Number of cycles: 3500+(up to 80%), 6000+(up to 50%)
• Control system: BMS, overvoltage protection, short circuit protection
• Possibility of charging from a solar panel: panel up to 200 W.
• Maximum charging input: 700W
• Weight: 36.1 kg
• Dimensions: 52 x 32 x 26.6 cm

In the box:

• Battery module Bluetti B300
• Cable (P090A)
• Solar Panel Cable (MC4-XT90)
• User guide
